| ALUMINUM COPOLYMER LAMINATION TAPE | | |
Product Description

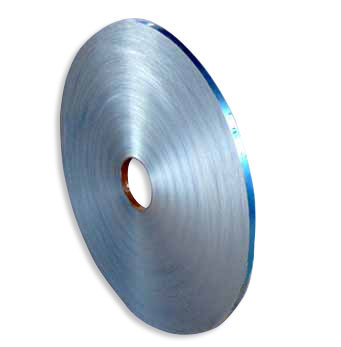

EL/ELE plastic clad metal consists of an aluminum tape coated on one side with an adherent ethylene copolymer either clear or color-coded blue. The copolymer exhibits excellent adhesion to the aluminum substrate and has the chemical resistance and general characteristics of low-density polyethylene, it bonds to low, linear low, medium and high density polyethylene. The aluminum is electrical grade and purity, which has high conductivity and fabrication characteristics. |
| |
|
|
| |
|
Type |
Standard |
Thickness |
Color |
|
EL/ELE |
YD/T723.2-94 |
Aluminum |
EAA |
Total |
White, Green |
|
|
0.08 |
0.04 |
0.12 |
|
|
Property |
Unit |
Typical value |
Test method |
|
Tensile Strength |
MPa |
³58 |
ASTM E8 |
|
Elongation at break |
% |
³10 |
ASTM E8 |
|
Peel strength |
N/cm |
³6.13 |
ASTMB736 |
|
Heat seal strength |
N/cm |
³17.5 |
ASTMB736 |
|
Filler/Floodant Resistance
68±1°C,168hrs |
|
No delamination |
REA PE-39,
PE-89 |
|
Water Resistance
68±1°C,168hrs
Peel strength |
N/cm |
³6.13 |
ASTM B736 |
|
Dielectric strength
Two-side, DC 1KV, 1 min |
|
|
No break |
|
Corrosion Resistance |
Grade |
7 |
