Aluminum polyester tape provides conductivity and electromagnetic insulation. PET film provides electrical insulation and high mechanical strength. About 100 ℃，EAA hotmelt resin has good result to PE materials after heating.

Advantage

◆ Hotmelt resin has a considerable advantage to reduce the 70% of the thickness compared to the EAA heat sealable film.
◆ Professional glue for metals
◆ Wide range of application and easy to use
◆ RoHS and SGS standard

Application

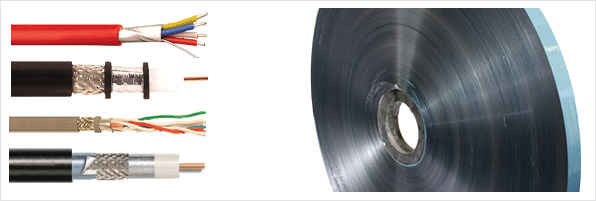

Aluminum polyester tape is mainly used on coaxial cables, signal cables, control cables, instrumentation cables, LAN cables, data communication cables, and most of the other communication cables.

Size

Thickness	Width	Length	O.D	I.D
0.01mm-03mm	3mm-1300mm	1000m-30000m	100mm-1000mm	52mm/76mm

Technical Data Sheet AL+PET+EAA：

Constructure	Total Thickness	Weight （g/m2）	Yield (m2/kg)
AL7 PET12 EAA25	49 mic	65	15.4
AL7 PET15 EAA25	52 mic	69	14.5
AL9 PET12 EAA25	51 mic	71	14
AL9 PET15 EAA25	54 mic	75	13.3
AL9 PET19 EAA25	58 mic	80	12.5
AL9 PET23 EAA25	62 mic	86	11.6
AL12 PET15 EAA25	57 mic	84	11.9
AL12 PET23 EAA25	65 mic	95	10.5
AL20 PET12 EAA25	63 mic	102	9.8
AL25 PET12 EAA25	68 mic	115	8.7
AL25 PET25 EAA25	80 mic	133	7.5

AL+PET+AL+EAA：

Constructure	Total Thickness	Weight （g/m2）	Yield (m2/kg)
AL7 PET12 AL7 EAA25	59 mic	85.5	11.7
AL7 PET15 AL7 EAA25	62 mic	89.7	11.1
AL9 PET12 AL9 EAA25	63 mic	96.3	10.4
AL9 PET15 AL9 EAA25	66 mic	100.5	10.0
AL9 PET19 AL9 EAA25	70 mic	106.1	9.4
AL9 PET23 AL9 EAA25	74 mic	111.7	9.0
AL12 PET15 AL12 EAA25	72 mic	116.7	8.6
AL12 PET23 AL12 EAA25	80 mic	127.9	7.8
AL20 PET12 AL20 EAA25	86 mic	155.7	6.4
AL25 PET12 AL25 EAA25	96 mic	182.7	5.5
AL25 PET25 AL25 EAA25	106 mic	200.9	5.0

Note: Above values are the accumulative typical ones by recognized test method,but ensure you to select our products properly,please feel free to contact us for more details.
