PRODUCT |
|
|
 |
|

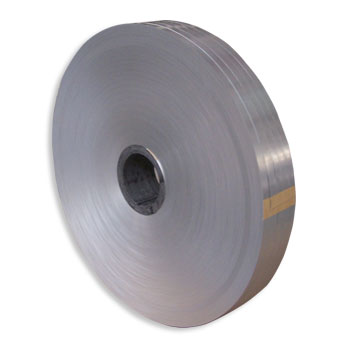

| STEEL COPOLYMER LAMINATION TAPE | | |
|
Product Description
EGE-25 plastic clad metal consists of a steel tape coated on both sides with an adherent ethylene copolymer. The copolymer exhibits excellent adhesion to the steel substrate and has the chemical resistance and general characteristics of lower density polyethylene, it bonds to low, linear low, medium and high density polyethylene. The steel is low carbon, electronic chrome-coated steel tempered to T-2 condition for excellent formability and fabrication characteristics. |
| |
|
|
| |
|
Type |
Standard |
Thickness |
Color |
|
EGE-25 |
YD/T723.3-94 |
Steel |
EAA |
Total |
White, Green |
|
|
0.155±0.005 |
0.05±0.005 |
0.255±0.01 |
|
|
Property |
Unit |
Typical value |
Test method |
|
Tensile Strength |
MPa |
300 |
ASTM E8 |
|
Elongation at break |
% |
15 |
ASTM E8 |
|
Peel strength |
N/cm |
6.13 |
ASTM B 736 |
|
Heat seal strength |
N/cm |
17.5 |
ASTM B736 |
|
Filler/Floodant Resistance
68±1°C,168hrs |
|
No delamination |
REA PE-39,
PE-89 |
|
Water Resistance
68±1°C,168hrs
Peel strength |
N/cm |
6.13
|
ASTM B736 |
|
Dielectric Strength
Two-side, DC 2KV, 1 min |
|
|
No break |
|
Corrosion Resistance |
Grade |
7 |
| |
|
